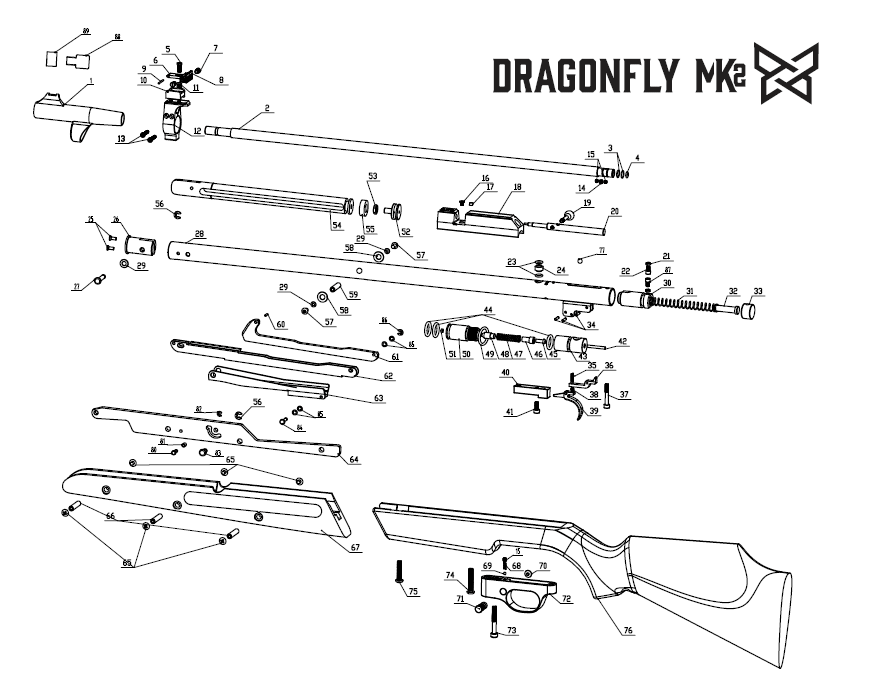

Product Schematics for Seneca Dragonfly Mk2 Multi-Pump Air Rifle

Available Parts

Click to select part(s)

• Seneca Dragonfly MK2 Complete Trigger Assembly
• Seneca Dragonfly MK2 Repair Kit
• Seneca Dragonfly MK2 .22 Barrel
• Seneca Dragonfly MK2 Barrel O-Ring
• Seneca Dragonfly MK2 .177 Breech O-Ring
• Seneca Dragonfly MK2 .22 Breech O-Ring
• Seneca Dragonfly MK2 Safety Screw
• Seneca Dragonfly MK2 Barrel Set Screw
• Seneca Dragonfly MK2 Breech Block Front SIght Screw
• Seneca Dragonfly MK2 Breech Block Magnet
• Seneca Dragonfly MK2 .177 Breech Block
• Seneca Dragonfly MK2 .22 Breech Block
• Seneca Dragonfly MK2 Bolt Handle
• Seneca Dragonfly MK2 .177 Firing Pin
• Seneca Dragonfly MK2 .22 Firing Pin
• Seneca Dragonfly MK2 Air Reservoir Screw
• Seneca Dragonfly MK2 Air Reservoir End Piece
• Seneca Dragonfly MK2 Air Reservoir Pin
• Seneca Dragonfly MK2 Disc Spring
• Seneca Dragonfly MK2 Trigger Pin
• Seneca Dragonfly MK2 Piston Rod
• Seneca Dragonfly MK2 E Circlip
• Seneca Dragonfly MK2 M4X8 Screw
• Seneca Dragonfly MK2 Disc Spring 6.2
• Seneca Dragonfly MK2 Pivot Shaft
• Seneca Dragonfly MK2 Pivot Arm Pin
• Seneca Dragonfly MK2 Cocking Lever #3
• Seneca Dragonfly MK2 Cocking Lever #2
• Seneca Dragonfly MK2 Cocking Lever #4
• Seneca Dragonfly MK2 Cocking Lever #1
• Seneca Dragonfly MK2 Safety Spring
• Seneca Dragonfly MK2 .177 Barrel
• Seneca Dragonfly MK2 Detent Ball
• Seneca Dragonfly MK2 Right Side Safety Button
• Seneca Dragonfly MK2 Left Side Safety Button
• Seneca Dragonfly MK2 Trigger Guard
• Seneca Dragonfly MK2 Trigger Guard Screw Allen Head
• Seneca Dragonfly MK2 Wood Stock Screw
• Seneca Dragonfly MK2 M5x22 Stock Screw
• Seneca Dragonfly MK2 Main Stock
• Seneca Dragonfly MK2 Air Reservoir Rubber Ball
• Seneca Dragonfly MK2 Connecting Pin Bushing
• Seneca Dragonfly MK2 Connecting Pin Circlip
• Seneca Dragonfly MK2 #2 Connecting Pin
• Seneca Dragonfly MK2 #4 Connecting Pin
• Seneca Dragonfly MK2 Connecting Pin Disc Spring
• Seneca Dragonfly MK2 Connecting Pin Circlip 2
