by Tom Gaylord
Writing as B.B. Pelletier
Diana 27S.
Part 1
Part 2
Part 3
Part 4
Part 5
This report covers:
- Two accuracy tests
- Today’s test
- Sight-in
- Air Arms Falcons
- JSB Exact RS
- H&N Baracuda Match 4.52mm head
- RWS Meisterkugeln Rifle
- Discussion
- Summary
It has taken me 6 reports to get to the first accuracy test of the Diana 27S. I think that’s a record. But the way it was shooting before was too rough and I wouldn’t have wanted to shoot it for any length of time. I’m glad I waited for the parts to arrive and did the job right.
Two accuracy tests
There will be two different accuracy tests. Today I’m shooting the rifle with the open sights it came with. Next time I will mount a Diana peep sight and test it again with that. Today will be at 10 meters. Next time I’ll back up to 25 yards.
Today’s test
I shot the 27S off a sandbag rest at 10 meters for today’s test. I started shooting with the artillery hold, but I soon noticed how smooth the rifle was shooting, so I switched to resting the stock directly on the sandbag. Only one target that you will see in today’s report was shot with the artillery hold.
I shot both five- and ten-shot groups, so I will tell you the count for each one as we go. Before I started shooting I read the last accuracy test of the Diana 35 that I tuned last year. I figured that since these two air rifles have the same maker, the same .177 caliber barrel and similar power, the best pellet for the 35 would be a good place to start.
Sight-in
I was shooting with the open sights that came with the rifle. They might be off a little, but unlike an optical sight they should at least be somewhere on the paper. So I started shooting right from 10 meters. It took 4 pellets to get on target where I wanted to be.
Air Arms Falcons
The first pellet was the same one I used to sight in — the Air Arms Falcon. The first target was ten shots using the artillery hold. This is the only group in this report that I shot using the artillery hold.
Ten Air Arms Falcon pellets went into 0.675-inches at 10 meters. It’s pretty obvious that I had an aiming problem with one of the ten shots, because nine of them are in a round group measuring 0.303-inches between centers and that lone shot is above and separated from the group. Seeing that prompted me to try resting the rifle directly on the sandbag, which worked so well that I completed the test that way.
This first group of 10 Falcons convinced me to try resting the rifle directly on the sandbag. The group measures 0.675-inches between centers, with 9 in 0.303-inches.
I guess the sight-in wasn’t as precise as I thought. I adjusted the rear sight up three clicks and shot again with the rifle rested on the bag. This time 10 pellets went in 0.384-inches at the same 10 meters. From that I decided to rest the rifle on the bag for the remainder of the test. The rifle still shoots to the left but I can accept that.
This group of 10 Falcon pellets was shot with the rifle resting on the sandbag. It measures 0.384-inches between centers.
JSB Exact RS
Now I switched to JSB Exact RS pellets. I figured they were enough like Falcons that they could do well in the 27S. Ten went into 0.535-inches. Not quite as good as the Falcons.
Ten JSB Exact RS pellets went into this 0.535-inch group at 10 meters.
The RS pellets also hit the target below the center of the bull, so I raised the rear sight by three clicks and shot a second 5-shot group. That one measures 0.411-inches between centers. And it’s nicely centered.
Five JSB Exact RS pellets went into 0.411-inches at 10 meters. The sight adjustment was perfect!
H&N Baracuda Match 4.52mm head
Next I tried five H&N Baracuda Match pellets with 4.52mm heads. They are really too heavy for the 27S. but I wanted to see how they would do.
Actually they didn’t do too bad. Five pellets went into a group that measures 0.411-inches between centers. It is 4 inches above the aim point though, and 0.7-inches to the right. Given how well Falcons do, I didn’t pursue this one any further. That would have meant adjusting the rear sight too much.
Five H&N Baracuda Match pellets with 4.52 mm heads went into 0.411-inches at 10 meters.
RWS Meisterkugeln Rifle
The last pellet I tried was the 8.2-grain RWS Meisterkugeln Rifle wadcutter. Five of them went into 0.54-inches at 10 meters. They also went high, though only 2 inches above where I aimed.
Five RWS Meisterkugeln Rifle pellets went into 0.54-inches at 10 meters.
Discussion
The 27S shoots beautifully. It hasn’t got a hint of vibration, though it does slide backward about an inch when it fires. Even though I rest it on the bag I still hold it very lightly.
The open sights are not very precise. I am hoping to do better when I mount the target sight on the rear.
The gun is as powerful as I want. Actually it’s a bit too powerful. I prefer the older model 35 that’s about 40 f.p.s. slower and 6 lbs. lighter to cock. But that one can’t accept a peep sight and this one can. So we’re not done yet.
Summary
The lube tune was a complete success. The rifle is now smoother to cock and much smoother to shoot. The power came back when I replaced the breech seal, but this light lube tune with Tune in a Tube changed the rifle’s personality completely. Twenty-five yards next!
B.B.,
Why do you think the heavy Baracuda pellets shot 4 inches high? Were they a loose fit?
Nice shooting.
Don
Don,
They take longer to clear the barrel and it rises in recoil during that time.
B.B.
B.B.,
I have been thinking about this question(s) since my first read of the blog on Friday!
As I am the first to always admit, I don’t really know much about shooting Spring Piston powerplant airguns, but 4″ high at 10 meters rested on anything, hand, sandbag, competition rest, bipod, or sticks, is almost beyond my comprehension. Especially after you have said you like how your tune has made this rifle shoot. I realize you said, “They are really too heavy for the 27S. but I wanted to see how they would do.” Okay so far; but did the rifle noticably react in recoil to the heavier pellet and how bad subjectively was it? Is this reaction to an overweight pellet the norm for all Spring Piston power plants?
shootski
shootski,
No, that much offset it isn’t the norm. However, this rifle does move backward a full inch in recoil because I hold it on the bag loosely. It is my guess that the movement, coupled with the much lower velocity, is what is causing that pellet to hit high.
I don’t remember feeling anything odd about the shot cycle when that pellet was fired and I was watching for those things, so I would have noticed it.
I can tell you this — in firearms, when you shoot heavier bullets at slower velocities they often do hit significantly higher because they are still in the barrel when it starts to rise in recoil. This could be something similar.
B.B.
B.B.,
Thank you!
Great reply to the GAS gun shooters question!
Yes I have seen reloaders not understand the need for a faster pressure rise on the propellent burn to get comparable results with a heavier bullet’s POI.
It drives them crazy to be told to shoot a faster MV to hit lower!
With my PCPs i find adjusting striker (hammer) spring preload to be the first change to make along with an increase in gas pressure as the next step.
But! As you well know you need a CHRONOGRAPH for that!
Thanks again Tom!
shootski
Shootski,
I had the TX200 and Walther LGU, both in .22 and shot them plenty. Could I tell a difference between a lighter vs heavier pellet? Not really. Gunfun1 has shot plenty and shoots a lot. He claims to very clearly feel the difference. Like BB said,… time spent in the barrel on the way to exit. Personally,… I will never go back to being a hard core springer guy. PCP’s are just too nice and so much easier to shoot well.
However,… I sincerely admire those that are hard core springer shooters. It does take a special talent and perseverance.
Chris
ChrisUSA,
See my reply to B.B. above; it isn’t just Springer shooters that are impacted by the effect. I was just wondering about the amount of rise and if a the 27S showed indications beyond the large POI shift.
shootski
Shootski,
Not that I need to educate you on springers, or guns in general,… but this is a link that I always try to provide to someone new. Scroll about half way down and there is an illustration (dynamic), interactive, piece that might help to visualize the springer dynamics. The (whole) link is excellent (in my opinion) for anyone new to air gunning.
http://www.arld1.com/
Chris
ChrisUSA,
Actually, “Not that I need to educate you on springers,…” I am gathering information on those newfangled Springers all the time! I keep bouncing back and forth because of the perceived convenience ascribed to them. “Just pick her up and put a couple of Pellets in your pocket and go hunt…” Then m brought back to reality by factual reporting and my purchase urge gets tamped down yet again.
I enjoyed the link! You are correct every new Airgunner should have a look.
shootski
Shootski,
Yea,… for a pick up and go with minimal hassle,… springers are the ticket. As you know,.. PCP’s are not much hassle either,..but most can’t get past the expense to get started proper. It’s all a matter of trade-offs. Good luck on finding one that you would be happy with. When you find it,.. let me know.
Yes, that is a good link. I think that many air gunners that “think” they know it all might find some good reminders and/or maybe some “re-clarification” on what they think they know.
I do not know if you played with any of the articles,…. but many are interactive. You can change stuff in real time and see the immediate change and other ones allow you to input new data and then see the change. Pretty cool. And,… it is all dumbed down enough that most any new gunner should learn a lot very quickly. I discovered it after I had been in the game awhile but wished I would have seen it sooner.
Chris
BB
Just wanted to let you know I got the trigger screws I sent you years ago today that you used in the hatsan springer quattro trigger adjustments. I really did not expect you to return them to me but thank you for doing so.
I do read your blogs every night but just lurk otherwise so keep up the good work as I enjoy the reports on the new and old guns equally as well.
BD
BD,
I’m so sorry I took so long to return them.
B.B.
BB
Not a problem at all.
BD
Hi Buldawg76,
Nice to see you post – hope all is good with you!
Hank
Hey Vana
Doing good all thing considered. Health is being a roller coaster these days but I believe I got it on the run finally.
Hows everything with you and yours. Still enjoying semi retirement or have you gone full retirement now.
BD
Buldawg,
Glad you are still following the reports. I miss your valuable contributions to the blog.
Don
Benji
I may try to start back posting some as time continues. Getting some things back under better control so life is better.
Its good to know I am missed.
BD
BD,
Yea, you were missed. You have a pretty good knowledge on modding stuff. I always found your information to be spot on and well researched. The rest of us just gotta keep you and gunfun from turning the blog into a hot-rod forum! LOL! 😉
Chris
Chris
I have missed you all as well, just been a rough few years. I admit I hang out on the GTA forum for the most part nowadays and it has really expanded my knowledge and ability to mod my guns greatly. I am one that can never leave well enough alone or ever be satisfied with a stock gun or vehicle for that matter. Everything can always be made better than the manufacture sells it IMO.
I will try to post here more often as I can in the future.
Good luck with the hot-rod thing, we are just two peas in a pod in that respect. LOL Gearheads for life is all I can say.
BD
BD,
“Everything can always be made better than the manufacture sells it IMO.”,… that is what I have always thought too and is a big part of why I have stayed with this. I have not done much of anything in the way of modding as of late.
If you are ever interested in a .25 M-rod in full RAI furniture with a FAB defense 6 position,… let me know. The Red Wolf has me spoiled and the M-rod is just collecting dust. It is set up nice. Real nice.
Chris
Chris

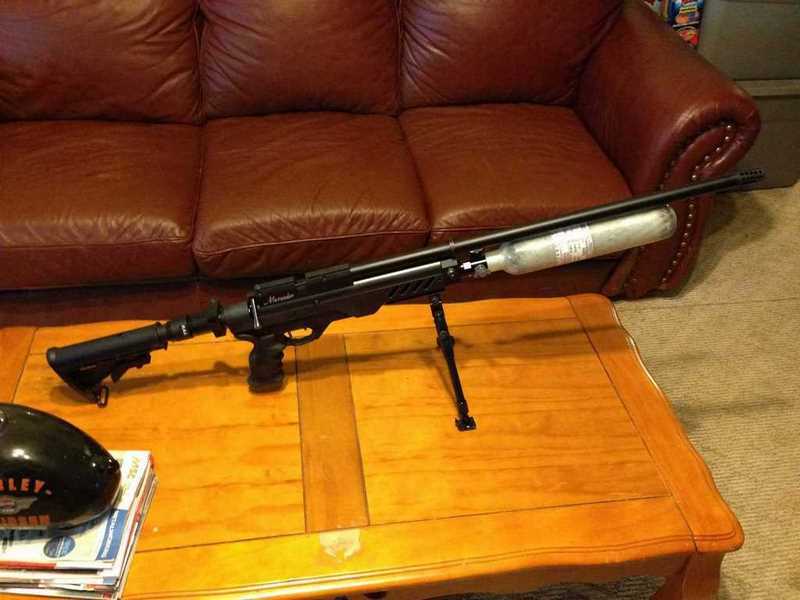

You mean like this Brod.
