by Tom Gaylord
Writing as B.B. Pelletier
Crosman Mark I target pistol.
This report covers:
- Loading the CO2 cartridge
- O-ring material
- Velocity
- RWS Hobby
- Air Arms Falcons
- Crosman Premiers
- Discussion
- Shot count
- Trigger pull
- Summary
Today we look at the power of my Crosman Mark I Target pistol. This will be interesting because I don’t remember ever doing it. I probably did, but without a report to read I can’t remember.
Loading the CO2 cartridge
Usually on a CO2 pistol that stores the 12-gram CO2 cartridge in the grip, one of the grip panels comes off to remove and install the cartridge — the left one, more often than not. Not so with this pistol. Instead there is a large knurled cap at the bottom of the grip that is removed, and the cartridge inside slides out. If there is still significant gas in the gun, the pressure will force the o-ring in the cap to seal the cap tight and it may not rotate. Don’t use pliers to force it! Shoot the gun until the gas is gone or almost gone.
The cap with the lever for piercing is the most common on the Marks I and II.

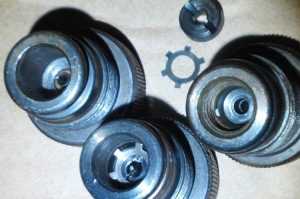

Here is the cap out of the gun. The o-ring that looks brown now was cream-colored when it was installed. Years of contact with Pellgunoil have changed the color.
There is also a later second type of CO2 cap. Instead of the lever it has a large button that you press in to pierce the cartridge. Crosman recommended pressing it against something hard, like a table, and it was covered in rubber to both not slip and also not mar the table. As near as I can tell it came out in the mid-1980s and is the less common type of piercing system. I suppose collectors like to have guns with this cap to complete their collections, but if you shoot the lever is much better.
Here the lever has been rotated forward to pierce the CO2 cartridge.
The piercing pin is inside the cap. The lever moves it down (up in this view) to pierce the cartridge.
This button piercing system replaced the earlier lever system in the 1980s. It is less common than the lever and also a little harder to use. Photo provided by reader Halfstep.
I must confess that I thought the button piercing cap was older than the lever type, but reader Halfstep informed me that it was actually later. I researched it in several old catalogs and Shooter’s Bibles and discovered he is right.
O-ring material
Now, learn something about the material of which o-rings are made. Sometimes the material is permeable, which means the gas can be absorbed into the material of the ring which then swells up and keeps pressure on the cap for hours after the gas inside the gun has been exhausted. This problem doesn’t occur with modern o-rings because they are made from material that is impermeable to CO2. You don’t run into this often today, but 40 years ago it was common. Nearly all those older guns have been resealed by now, so if there is still a problem it’s because some owner used a hardware store o-ring made from gas-permeable material.
Velocity
I will test velocity on both high power and low power for the same pellets. I’m only going to shoot 5 rounds on each setting, because a gas gun shouldn’t vary that much. And I will wait at least 10 seconds between every shot.
RWS Hobby
First up were RWS Hobby pellets. I expected them to be the fastest and they were. On high power they averaged 463 f.p.s. The low was 456 and the high was 466 f.p.s., so a spread of 10 f.p.s. At the average velocity the pellet generated 5.67 foot pounds at the muzzle.
On low power the Hobbys averaged 326 f.p.s. The spread went from a low of 312 to 333 f.p.s. That’s a range of 21 f.p.s. At the average velocity with this power setting Hobbys generated 2.81 foot pounds at the muzzle.
Air Arms Falcons
Air Arms Falcon pellets averaged 453 f.p.s. on high power. The spread went from 452 to 456 f.p.s., so just 4 f.p.s. between the low and the high. At the average velocity this pellet generated 6.12 foot pounds at the muzzle.
On low power the Mark I shot Falcons at an average 313 f.p.s. The spread went from 306 to 316 f.p.s., so 10 f.p.s. difference. At the average velocity on this power setting this pellet generated 2.92 foot pounds at the muzzle.
Crosman Premiers
I’m shooting a Crosman classic air pistol, so of course I have to test it with Crosman Premier pellets. On high power they averaged 437 f.p.s. The low was 435 and the high was 441 f.p.s., so a spread of 6 f.p.s. At the average velocity the muzzle energy was 6.07 foot pounds.
On low power Premiers averaged 296 f.p.s. with a spread from 290 to 301 f.p.s., which is 11 f.p.s. At this average velocity the pellet generated 2.78 foot pounds of energy at the muzzle.
Discussion
The pistol is about where I expected it to be — low to mid-400s on high power with light- to medium-weight pellets. Now — what about the shot count?
Shot count
To this point I had fired the gun 30 times on one CO2 cartridge. Half of that was on high power and half was on low. That’s 15 shots on high power and 15 on low. That might compute to about 20-22 shots on high power. So I went back to Hobby pellets and started shooting again. This time it was all on high power and all Hobbys. I will begin this test with shot number 31.
Shot………..Velocity
31…………….470
32…………….470
33…………….469
34…………….467
35…………….476
36…………….468
37…………….469
38…………….470
39…………….465
40…………….473
41…………….473
42…………….472
43…………….475
44…………….470
45…………….475
46…………….477
47…………….473
48…………….470
49…………….474
50…………….462 the liquid CO2 is gone
51…………….464
52…………….460
53…………….452
54…………….448
55…………….443
56…………….434
57…………….429
58…………….429
59…………….418
60…………….408
61…………….401
62…………….393
63…………….388
64…………….376
65…………….361
66…………….347 stopped
This string shows the performance of CO2 quite well. As long as some liquid CO2 remains inside the cartridge to evaporate into gas, the velocity remains in about the same place. The moment the liquid has all evaporated, the velocity starts dropping and never recovers. That’s why we say CO2 is self-regulating. As long as it remains at a consistent ambient temperature, it acts like a pressure regulator.
So — how many shots do you get from a cartridge? That would depend on whether you are shooting on high power all the time, low power all the time or a combination of both power levels. Before conducting this test I would have guessed there were about 45 shots at consistent velocity on high power, which is about what we see here. Remember that 15 of the first 30 shots were on low power.
This pistol was resealed years ago by Rick Willnecker and it seems to be about where a new Mark I should be. Beyond that I can’t say anything because other Mark Is have either gotten tired and may need a rebuild or they may have been souped up by a tuner.
I would also like to point out that there are several more shots on this cartridge than I shot. Looking at the rate at which the velocity is dropping I would guess around 10 or so. I don’t like to shoot absolutely every possible shot from a gas gun because you run the risk of sticking a pellet in the bore. But the Marks I and II are single shots that are quite easy to clear.
Looking down on the open breech we can see that it is easy to push out a stuck pellet with a rod inserted through the muzzle. Tuners will thin the pellet probe at the end of the bolt to make more room for gas to flow.
Trigger pull
I tested the gun the way it was set up, and when it is set on high power the trigger pull is 11 ounces for stage one and 4 lbs. 5 oz. at the break point of stage two. I thought stage two was breaking at two pounds, because this trigger is a crisp as a breaking glass rod.
On low power there is only a stage one and the trigger breaks at 1 lbs. 15 oz. the way the gun was set up. That’s good, but I don’t normally shoot on low power. I wanted to adjust the trigger to see if I could get the high power stage two let-off any lighter.
I screwed the Allen screw in (clockwise) and got a two-stage (high-power) let-off of 1 lb. 6 oz. It remained glass-crisp. The single stage (low power) pull went to 2 lbs. 3 oz. I can live with that all day!
Summary
Well, that is a good look at my Mark I that I believe is representative of most Crosman Marks. Next comes accuracy and I can’t wait!
B.B.,
I think the American Zimmerstuzen would be an appropriate article to start the New Year with a bang.
Manigong Bagong Taon sa lahat! (Happy New Year to All!)
Siraniko
Siraniko,
There was no room to reply to your comment about the regulator on my Onix Sport. Thanks for responding. I seem to remember that as well, now that you have mentioned it. I hope you are right, but I will be keeping it no matter what. It is just too accurate. Do you know if it’s harmful to adjust a regulated gun with air in the reservoir?
Manigong Bagong Taon to you as well.( did I pick out the Happy New Year part?) I don’t know if i’m pronouncing that entirely correctly, but the way I’m saying it is fun!! I have forgotten. Where do you hail from, again?
Half
Half,
I don’t believe it’s harmful. Although it might be safer if degassed. Cumbersome though to repressurize then depressurize to do the checking.
I’m in the Philippines BTW.
Siraniko
Siraniko,
The Onix is externally adjustable so it doesn’t need to come apart. Sure would be nice if it could be done safely without degassing.
Half
Hajimoto posted a nice video review of the new Gauntlet .25 caliber a few days ago. He gets a little deeper into the inner workings of the rifle than most other reviewers. A couple of things I found particularly interesting. One was the cracked air stripper, and two, the fact that the .25 barrel OD is the exact same size as the .22 barrel OD.
https://www.youtube.com/watch?v=bNwNaAHl-CI&feature=em-uploademail
A Happy and Healthy New Year to everyone!
Geo
That’s funny he mentioned that about the air stripper on the end and of the barrel. It looks just like the one the Marauder rifles use. Probably different dimensions with out me having a Marauder at hand right now.
But I had 8 different Marauder rifles in all 3 calibers. And guess what. Out of those 8 guns two of them had that same piece cracked. And I called Crosman when that happened on the two different occasions. Each time they mailed me one no charge. And they was out of warranty even.
What I wonder is will Umarex do the same.
But man did you see that flat shot string his .25 Gauntlet got before he started messing with the different mods on the gun. Wasn’t as good once he made the modifications. Was not bad. But not as good as before the modding.
Live and learn as they say. Some times it is best to leave well enough alone I suppose.
Crosman started replacing the lever type cap with the button one after many guns were returned by owners that reported they were malfunctioning, but in actuality they were piercing the cartridge, and forgot to flip the lever back to retract the piercing pin to the shooting position.
I love these guns and own more than I should.
B.B.
Would you use the low power setting for 10m shooting?
If not, what is the point of high/low?
Happy NY everybody,
-Yogi
Yogi,
I have never shot the Mark I on low power, but I will for this test.
B.B.
On all of my mk1&2’s the low power position has a little creep in the trigger compared to the high power position which has a great trigger.
You can adjust the power screw to a lower setting, and shoot on the high power cocking position for the better trigger..
For me, the low cocking settings are used for close in plinking when power is not a factor, and shot count is, or when you are dispatching small pest at close range when you don’t need/want over penetration.
The high power settings (where I sight mine in for) is for longer range shooting, and where full power is needed.
High power consumes more gas, so shot count suffers.
I just don’t see why this gun has 2 power levels. If you can not shoot 25 foot targets on low power, why have it?
The trigger is supposed to be good.
-Y
B.B.,
I agree, there is no way the cartridge can escape on this pistol even if you got the cap off with a pair of pliers. It looked like this pistol though. I am pretty sure my cousin had to remove the left grip. We had some good times and quite a few adventures.
Don
If the cartridge still is under pressure, you can either:
A. Shoot it down.
B. Grasp the cocking knobs and pull them rearward to open the valve and vent the remaining gas.
You should NEVER have to use pliers on these guns..
45Bravo,
Pulling the cocking knobs to the rear doesn’t work on my gun.
B.B.
Co2 pressure has to be low for this degassing method to work. Saves yourself from a bunch of dry firing to empty.
A side note, it is good to cock the hammer prior to pressurizing a new co2 cart, no wasted gas
I love my 1st Gen Mk1, never letting this one go
Setup for indoor shooting now, BB you should remember this pistol from the PA Cup.
Erockrocket,
That may explain it. I have a fresh cartridge in the gun right now. I will try it when this one is down.
I guess I either don’t remember this or I never knew it.
B.B.
Erockrocket,
Yes, I do remember that pistol from the cup.
Thanks,
B.B.
Erockrocket,
That’s a great looking gun, How are the scope rings attached?
Half
Halfstep
To me it looks likes the rings are attached to a dovetail on the breech.
Doesn’t it have a dovetail?
GF1,
No rail on the original.
I haven’t forgotten about the Onix pistol. Was still doing Chrismas family stuff on Sat. and I shot 64 different pellets and I knew you would want pictures of the groups. It takes a while to sort through, plus I have to follow the current blog. I want to know all I can about these guns. I’ll get it posted, though.
Half
Halfstep
Looks like Erockrocket says a modded scope rail.
And also waiting for some shooting results from your Spanish pcp pistol. It was Spanish if I remember right wasn’t it.
And no hurry. Whenever you get to it.
GF1,
I’m done with enough of the testing on my Onix Sport pistol to post some results. The gun is made by Snowpeak in China and goes by a lot of names. I bought mine from a retailer in Madrid,Spain and it was about $233 delivered. It’s .177 cal and its the full power version. There is a UK friendly version that is limited to under 6 FPE. Giles on Airgun Gear reviews that one in .22 cal, I think. At one point when I was playing with the adjustments I had the gun set up over 12 FPE. It is now at about 8.5 to 9 FPE.
The darn thing has adjustments for everything. The regulator is adjusted with an Allen wrench inside the trigger guard. The transfer port is adjustable from the top of the breech block. Pull off the grips and the hammer preload can be set. Trigger is 2 staged and adjustable for length of the first stage through a hole in the trigger guard and with the grip removed the sear engagement is supposed to be adjustable with an Allen wrench. I haven’t messed with that yet. My trigger has a very short 1st stage and breaks at 1.6 lbs according to my digital fish scale. 🙂 The book that came with my gun is all Spanish and doesn’t really even have much in the way of illustrations for you to work from either. I searched every way I knew how for an online English version with no luck and asked for help from the guys that read this blog, but I must be the only owner ’cause none came forward. I ended up finding a YT video review done by a Spaniard and recorded his audio track with my Google Translate app and it translated it well enough for me to find the adjustments and know what they were for. I will still appreciate any help I can get from you guys. In Europe and the Middle East there is a folding shoulder stock that looks easy to install and looks good on the gun.
Out of the box the gun acted like an unregulated PCP, slowly climbing then dropping abruptly after reaching its peak. I wasn’t even sure if it had a regulator in my version. That video I mentioned assured me that I did and how to adjust it. so I cranked it down a turn. It fired one shot then quit shooting. I freaked a little because I thought I recalled some controversy about adjusting a regulated gun with air in the reservoir, which is how I did it. The Spanish guy did his that way. Anyhow, I turned it back about a half turn and it started acting like it was regulated. I went up some more with it and adjusted the transfer port to make it smaller didn’t like that result so opened it back up. ( you have about 4 turns of the screw to work with and the first turn doesn’t do much) Then I adjusted the hammer preload. I have it the way I’m going to leave it, I think.
The regulator still isn’t working just right. The first shot after a refill goes off at a very low velocity then goes way up. It holds that for many shots, dips down for awhile then rises again until it drops off steeply. I’ll put up a graph that shows it better than I can explain it. I shot 2 separate strings with RWS Hobby just to make sure it wasn’t a fluke.
Halfstep,
I’m thinking that the regulator just needs to be used a lot more before it becomes steady. B.B. I think experienced something like this in one of his recent reports using a regulated PPP (can’t quite recall which one though).
Siraniko
Half,
Adjusting the regulator pressure down at least with the FX Crown with pressure will damage the regulator, adjusting up is ok. I would degas the gun and move the reg to the lowest setting and then move it up from there. Also as you move the reg pressure up you may come to the end of the adjustment where the screw will be released and fired out of the gun at pressure, just some stuff to think about. Do be careful.
Also you know about google translate; https://translate.google.com/ if you can scan the manual to text you can translate 5000 characters at a time, that could be useful.
Mike
That was from a 220 Bar fill. That is the max pressure,by the way. If you or anyone else can explain whats going on, I like to hear from you. The review that Giles did on YT pointed out that his gun was just barely UK legal because when it got near the regulator setting the velocity went way up for a few shots and broke the 6 fpe law. He adjusted his hammer spring so that it never exceeded 6 fpe, but he also had to settle for a lower overall velocity for the entire string. So the reg ain’t great,so far, at least.
The sights are not fiber optic (yay) but the rear sight is only adjustable for windage. You loosen a screw and slide the sight in a grove left or right then lock it back down. My gun is shooting inline with the aimpoint but very high. The front sight is inserted into the barrel shroud (no silencing from this shroud)much the way a key is set into a motor’s shaft. It’s even rounded on the back end like a key. It’s held in place with a machine screw and looks as if it could be shimmed higher or the bottom could be filed to lower it, but that isn’t as adjustable as I would like. It has a long dovetail grove for an optic sight.
It’s loud, especially at over 12 fpe from a 8″ barrel. From watching other reviews I know that silencer adapters a available for it.
That’s the bad stuff, and now for the good. It has a good grip that fits my hand well. It has a good trigger that I think I can make even better. The fit and finish is very good. It gets lots of shots
Now for the accuracy.
I tested it the way I always do when possible, like the factory does, I clamp it in a vise. I know that doesn’t measure the shootability of the gun, but it tells me what pellets are accurate from it and that’s what I’m after, in the beginning. Her is a pic of some of the groups I got right off the bat. I’m shooting all of these at 13 yards and 1 inch from muzzle to target.
I got very excited about the gun at this point because I had already found half a dozen pellets, cheap pellets for the most part, that shot under a dime at 13 yards. These next photos are from when I was charting the power curve of the gun. They are long strings that range from 35 to 75 shots.

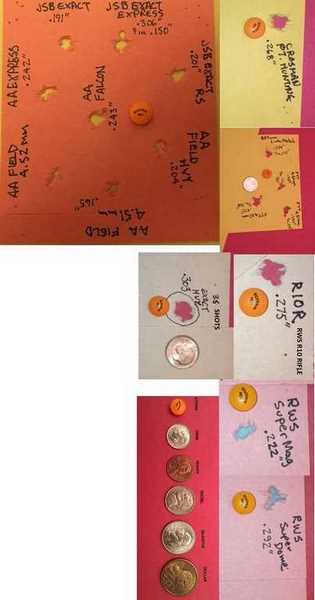

Then I started shooting 10 shot groups like this one with those Crosman pointed pellets that you buy in a milk carton.
